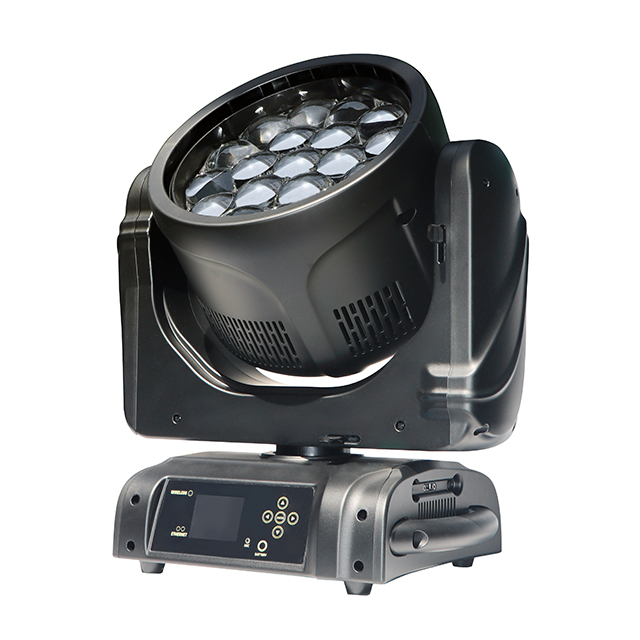

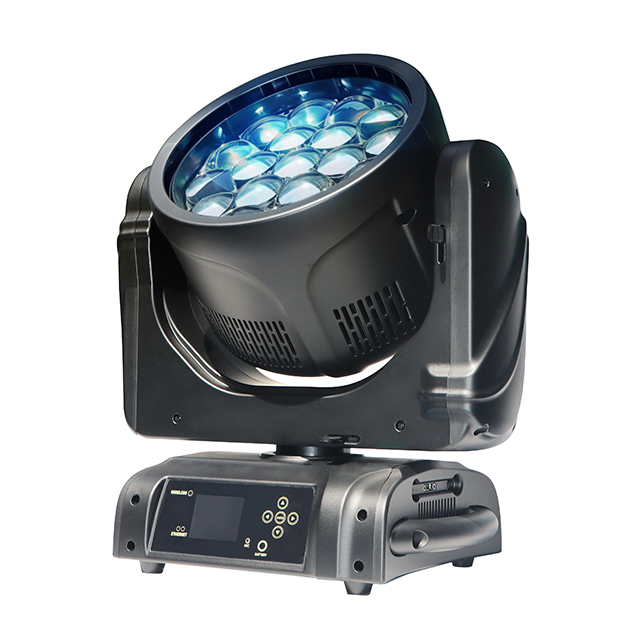

A194Z 19x40W LED Wash Moving Head

Type：LED  WASH  ZOOM  HEAD

Specifications：

• Light source: 19pcs OSRAM 40W 4in1 leds, PIXEL control

• Led life: 60.000 hours

• Luminous Flux:6468 lumen, 110621 lux@3m@4°, 2355 lux@3m@54°

• Control: Remote on/off via DMX


Optical System：

• Beam angle: 4° to 54°

X/Y:

• Pan:  540°(3.32 sec), Tilt: 265° (1.57 sec)

• 16-bit resolution

• Auto repositioning

Features：

• DMX channels: 38/76

• Super fast, smooth and silent movement

• Pixel control of every single led on RGBW separately

• Nice maping effect with dimming and color fading at the same time

• RGBW four colors mixing to create vivid, saturated and uniform color effect

• Pre-set color temperature at 2800K-10000K

• Zoom from 4° to 54°

• Full range 0-100% dimmer

• Various strobe

• RDM function to change DMX address, display flip, X/Y Reverse and so on

• Software upgrade via DMX

• Hibernation when lost DMX for preset time

• Indicate temperature info of base

• Fan speed auto change according to temperature

• Heat pipe for cooling

Display：

• 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu

• Auto lock

• Flip


• Back-up communicating IC

• Pre-set wireless and battery holder





Power：

• Max power consumption: 625W

• Power supply: Electronic auto-ranging

• Input voltage range: 100–240V, 50-60Hz

Dimension and Weight：

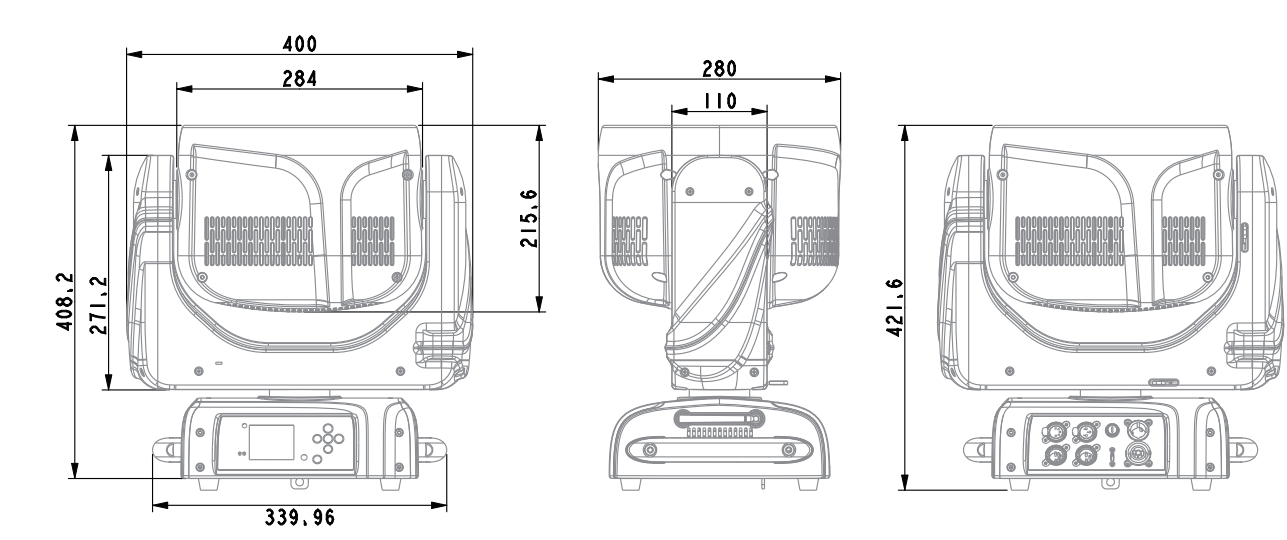

• Fixture: 40.8x40x27.9cm

• Packing: 51X41.5X31cm

• Net Weight: 20.9kg

• Gross Weight: 22kg
