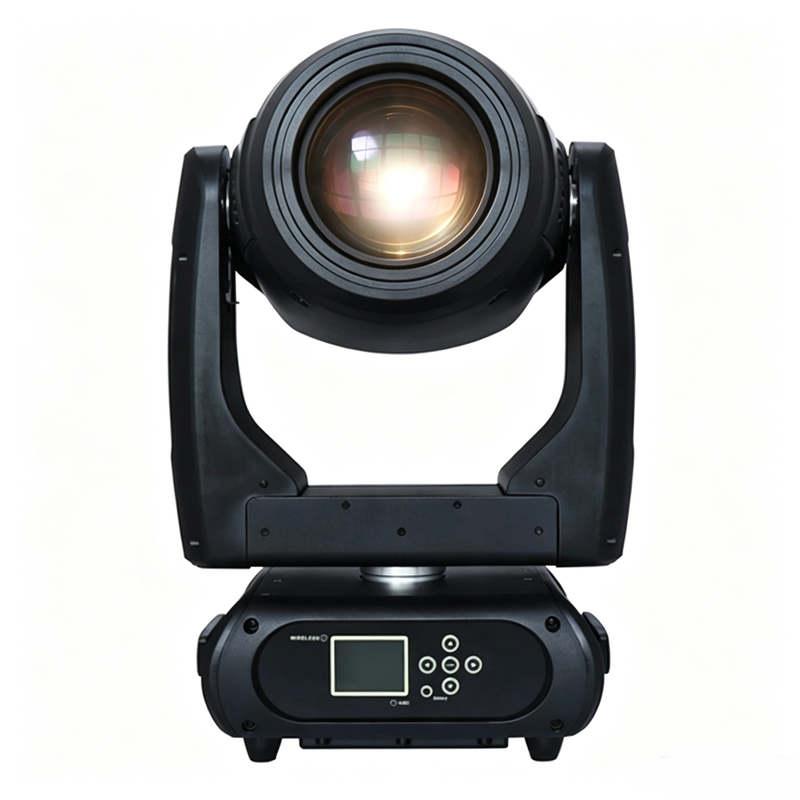

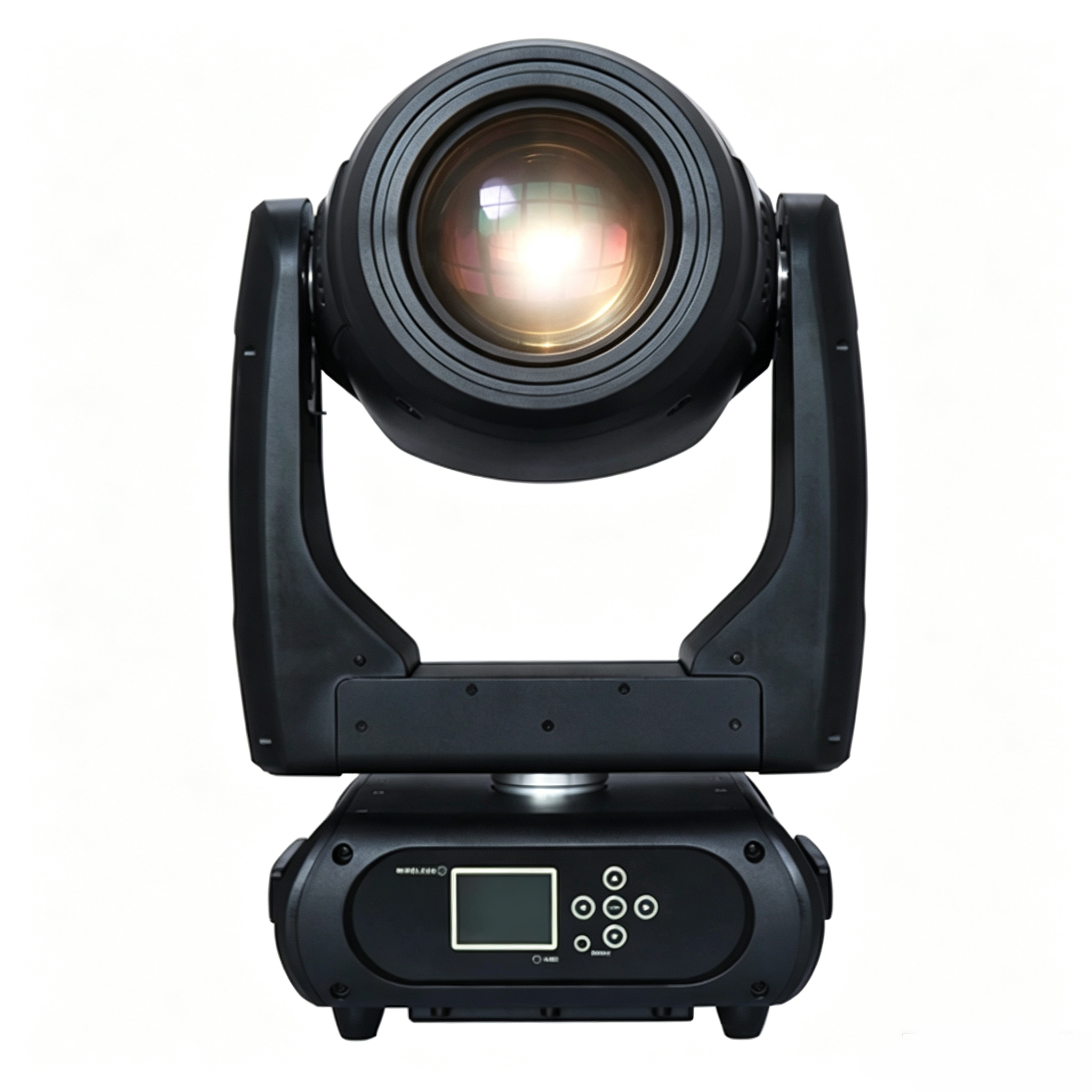

EVA281H 280W OSRAM 3in1 lamp Moving Head light

Type：BEAM/SPOT/WASH - 3in1

Specifications：

• Light source: OSRAM Sirius HRI 281W discharge lamp

• Lamp life: 2.000 hours

• Luminous Flux: 10435lumen, 699635lux@5m@2°beam，31390lux@5m@5.5°spot mode

• Control: Remote on/off via DMX

• Ballast: switching mode power supply

Optical System：

• Beam angle：2°-10° beam,5.5°-23° spot

X/Y:

• Pan: 630° (3.8 sec) or 540°(3.18 sec),Tilt: 265° (2.8 sec)

• 16-bit resolution

• Auto repositioning

Colors：

• 13+open, interchangeable, indexable and bidirectional rainbow effect

• Color bounce

Gobos：

• Rotating gobo wheel: 9 (galss)+open

• Static gobo wheel: 14+open

• Real indexable and gobo shaking

• Distinctive gobo animation effect

Features：

• DMX channels: 22/20/23/14/16

• Color wheel: 13+1 colors

• Rotating gobo wheel: 9+1 gobos

• Static gobo wheel: 14+open

• Zoom: 2°-10° beam, 5.5°-23° spot

• Motorized focus

• Full range 0-100% dimmer

• Various strobe

• Frost

• 6-Linear+8 facets prism

• RDM function to change DMX address, display flip, X/Y Reverse and so on

• RDM read voltage, current, power consumption of lamp

• Software upgrade via DMX

• Hibernation when lost DMX for preset time

• Indicate temperature info of base，lamp

• Fan speed auto change according to temperature

Display：

• 2.4inch super nice LCD display with friendly English/Chinese/French/Spanish menu

• Auto lock

• Flip

• Back-up communicating IC




Power：

• Max power consumption: 430W

• Powercon in ，3+5pins DMX

• Power supply: Electronic auto-ranging

• Input voltage range: 100–240V, 50-60Hz
