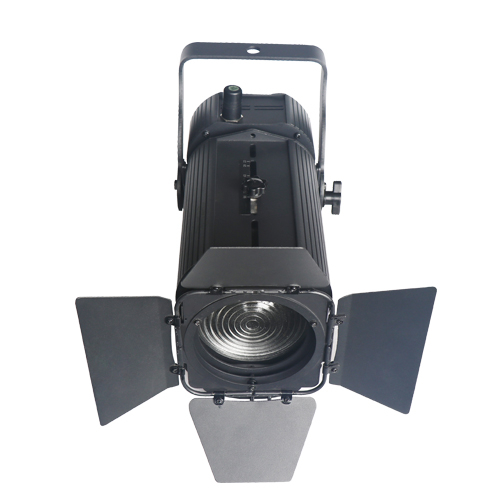

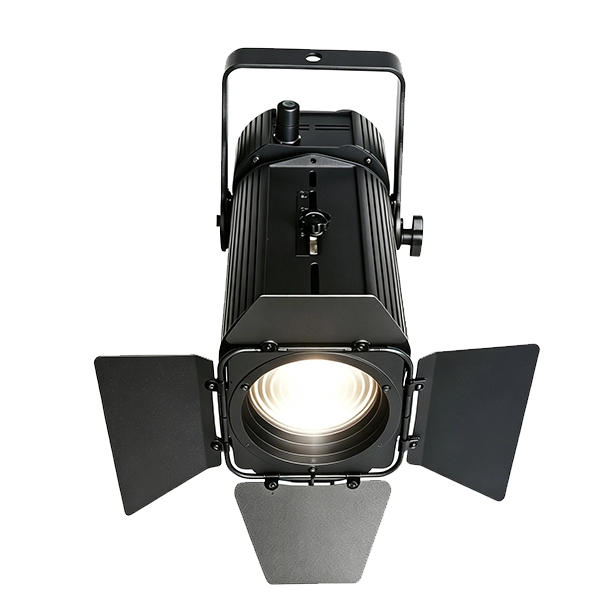

LF100CW-WW 100W white LED PROFILE

LED  PROFILE  - Cool White/Warm White

Light source and optics：

• Light source: 100W white LED

• CT: 5600K/3200K

• CRI: 97

• LED life: 50,000 hours

• Luminous Flux: 4914lumen

• Lux: 2820lux@5m@23°，183lux@5m@90°

Optics：

• Beam angle: 23°-90°

• Lens Type: HQ Glass optics

Body：

• Body: Sturdy aluminum body conceived  for long-time durability


• Body Color: Black/White

Features：

• DMX channels:2/4/1CH

• RDM function is to change DMX address, display flip, X/Y Reverse, show led voltage, current and power

• consumption info.

• Software upgrade via DMX only

• Hibernation when lost DMX for preset time

• Indicate temperature info of led

• Fan speed auto change according to temperature

• Dimmer Curve: 4 different dimmer curve available (Exponential, Linear, INV-Exp, and S-Curve).

• Control:Via DMX 512 protocol

Display：

• Display: Black OLED high resolution display  with friendly English menu

• Flip

Power：

• Max power consumption: 108W

• Powercon in and out , 5 pins

• Power supply: Electronic auto-ranging

• Ballast: switching mode power supply

• Input voltage range: 100–240V, 50-60Hz
