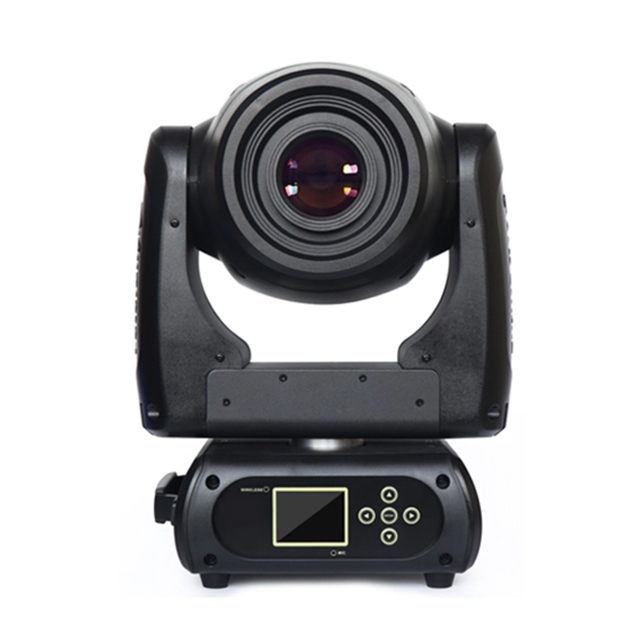

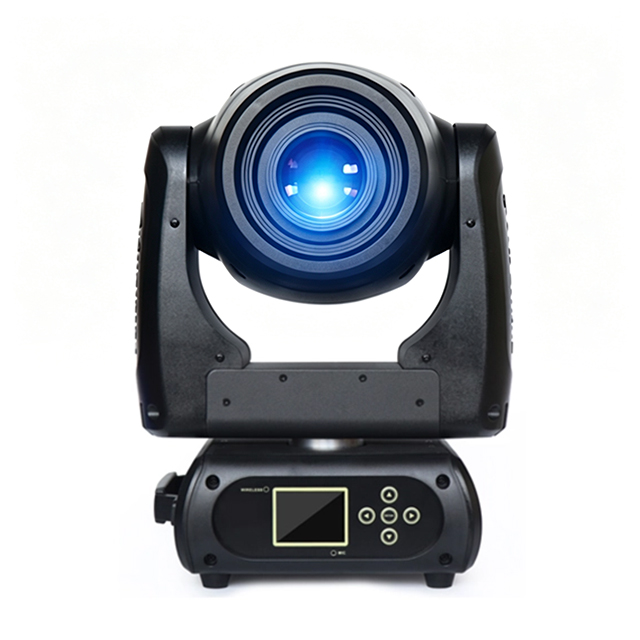

ADA80S 80w White led SPOT MOVING HEAD

Type：LED SPOT MOVING HEAD

Specifications：

•  Light source: Advanced 80w White led

• Led life: 60.000 hours

• Luminous Flux: 1826lumen, 10500lux@3m

• Control: Remote on/off via DMX

• Ballast: switching mode power supply

Optical System：

• Beam angle：12° -18° Manuel

X/Y:

• Pan: 630° (4.3 sec) or 540°(3.9 sec), Tilt: 233° (2.2 sec)

• 16-bit resolution

• Auto repositioning

Colors：

• 8+open,indexable and bidirectional rainbow effect

• Color bounce effect

Gobos：

• Outside ￠23mm, inside ￠18mm

• 7+open custom interchangeable position for rotating gobo wheel

• Real indexable and gobo shaking

• Distinctive gobo animation effect




Features：

• DMX channels:17/18/11/13

• Color wheel: 8+1 colors

• Rotating gobo wheel: 7+1 gobos

• Full range 0-100% dimmer

• Motorized focus

• Rotating Effect wheel with 16 facets prism

• Various strobe

• RDM function to change DMX address, display flip,

• X/Y Reverse and so on

• Software upgrade via DMX

• Hibernation when lost DMX for preset time

• Indicate temperature info of base,led

• Fan speed auto change according to temperature

Display：

•  2.4inch super nice LCD display with friendly

   English/Chinese/French/Spanish menu

•  Auto lock

• Flip

• Back-up communicating IC

Power：

• Max power consumption: 138W

• Power supply: Electronic auto-ranging

• Powercon in and out,3-pins DMX

• Input voltage range: 100–240V, 50-60Hz
