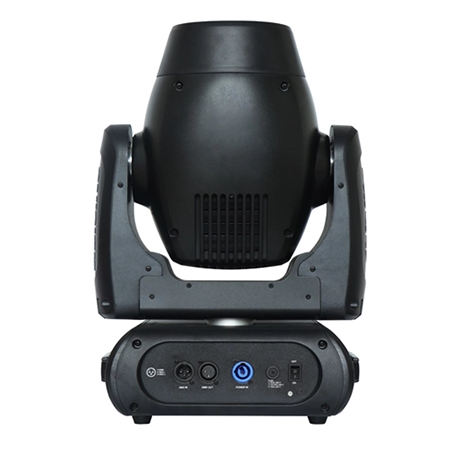

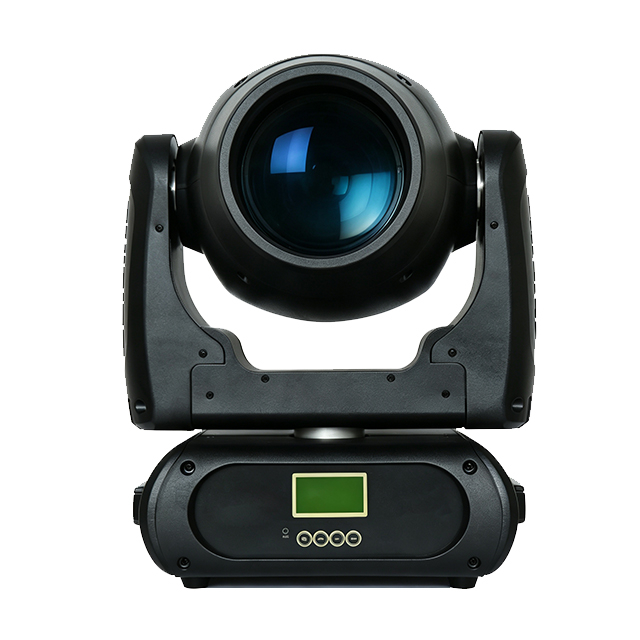

XPRO281B 281W Lamp Beam Moving head
Home » Products » HID Moving Head » XPRO281B 281W Lamp Beam Moving head

Product Category

XPRO281B 281W Lamp Beam Moving head

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • XPRO281B

  • Ablelite

  • 9405499000

Availability:
Quantity:

Type:Beam Moving head


Specifications

  • Light source: Lamp Sirius HRI 281W

  • Lamp life: 2.000 hours

  • Luminous Flux:14936lumen,369000lux@10m

  • Control: Remote on/off via DMX

  • Ballast: switching mode power supply


Optical System:

  • Beam angle:1.3°


X/Y:

  • Pan: 630° (4.0 sec) or 540°(3.28 sec), Tilt: 265° (2.8 sec)

  • 16-bit resolution

  • Auto repositioning


Colors:

  • 13+open, interchangeable, indexable and bidirectional rainbow effect

  • Color bounce


Gobos:

  • Static gobo wheel: 14+open

  • Real indexable and gobo shaking

  • Distinctive gobo animation effect


Features:

  • DMX channels: 11/13

  • Color wheel: 13+open colors

  • Static gobo wheel: 14+open gobos

  • Motorized focus

  • Full range 0-100% dimmer

  • Various strobe

  • Frost

  • 8 facets rotating prism

  • RDM function to change DMX address, display flip, X/Y Reverse and so on

  • RDM read voltage, current, power consumption of lamp

  • Software upgrade via DMX

  • Hibernation when lost DMX for preset time

  • Indicate temperature info of base, lamp

  • Fan speed auto change according to temperature


Display:

  • 2.0inch super nice OCG display with friendly English/Chinese/French/Spanish menu

  • Auto lock

  • Flip

  • Back-up communicating IC


Power:

  • Max power consumption: 420W

  • Powercon in,3pins DMX

  • Power supply: Electronic auto-ranging

  • Input voltage range: 100–240V, 50-60Hz


Dimension and Weight:

  • Fixture: 487x343x250mm

  • Packing: 610X430X360mm

  • Net Weight: 15KG

  • Gross Weight: 17KG


Dimension
